[OBDSTAR-C4-07] C4-07 ADAPTER KIT (MB-VGS4-0-NAG2) - OBDSTAR

Details

The C4-07 MB-VGS4-0-NAG2 adapter kit is specifically designed to provide drilling access to the FBS4 7G-Tronic VGS4-0-NAG2 Transmission Control Module (TCM). It supports solder-free virginizing of used TCMs via JTAG mode, as well as personalization (data transfer) via BENCH or OBD mode, achieving the same result as a TCM/ECU clone. This eliminates the need for automotive electronics technicians to have advanced soldering skills, making it a powerful tool for professionals in the field.

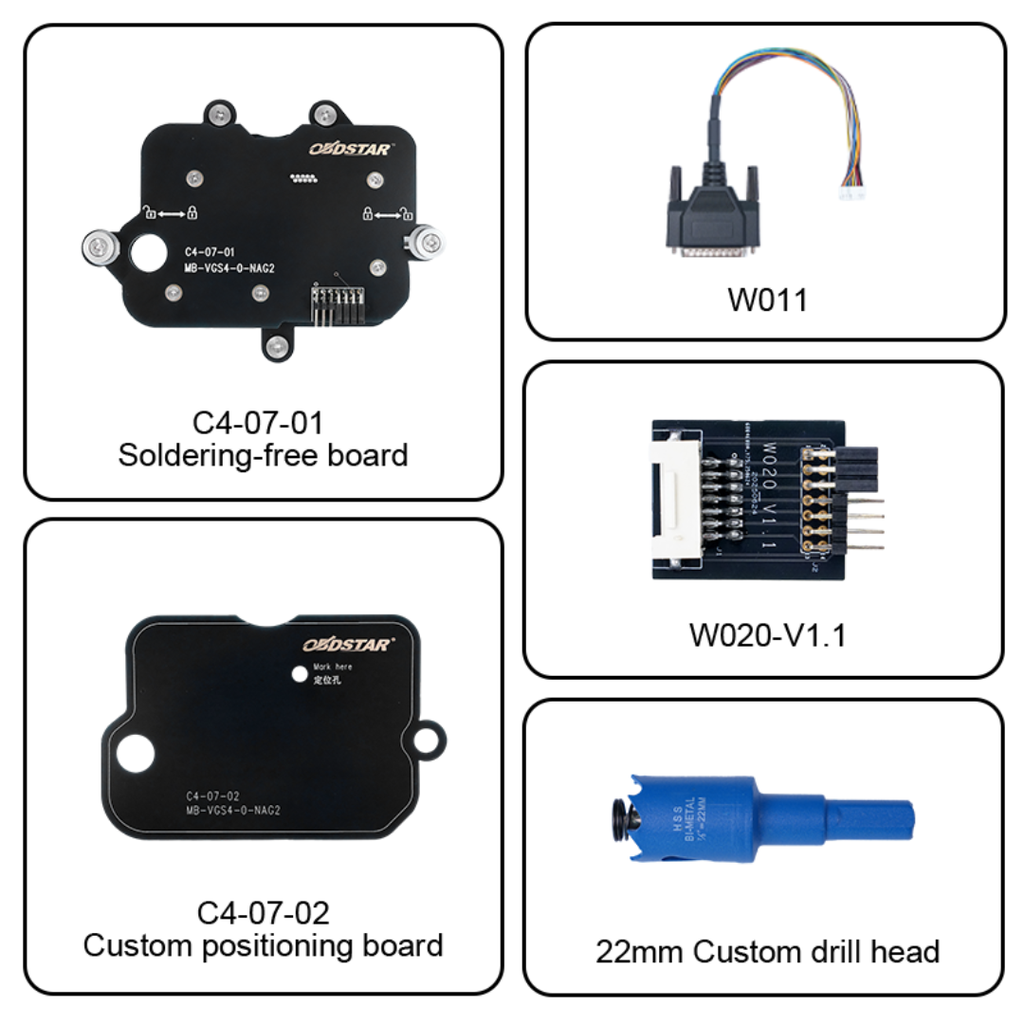

C4-07 (MB-VGS4-0-NAG2) ADAPTER KIT

1. C4-07-01 Solder-free board
2. C4-07-02 Custom positioning board
3. W011
4. W020-V1.1
5. 22 mm custom drill head
6. TCM-012 (optional)
7. Converter V2 (optional)

Note:

1. Must be used with the MP001 multifunction programmer.
2. All the above accessories are required to perform the functions. If you already have TCM-012 and Converter V2, you do not need to purchase them again.

Supported functions:

1. Supports all Mercedes-Benz vehicles equipped with VGS4-0 NAG2 7G-Tronic TCU of the FBS4/DAS4 generation.
2. Supports solder-free virginizing of used TCMs via JTAG mode.
3. Supports personalization (data transfer) via BENCH or OBD mode, achieving the same effect as a TCM clone.

Advanced functions:

1. Custom positioning board for precise and secure drilling access to the control unit.
2. When used together with the custom drill head and a handheld drill, the TCM can be easily opened with minimal exterior damage.
3. High-precision custom board enabling safe, solder-free read/write operations, ensuring reliable data access and operational safety.

Supported tools:

Use with OBDSTAR KeyMaster G3, DC706, etc.
